Torqueon Aluminium Electric Motors

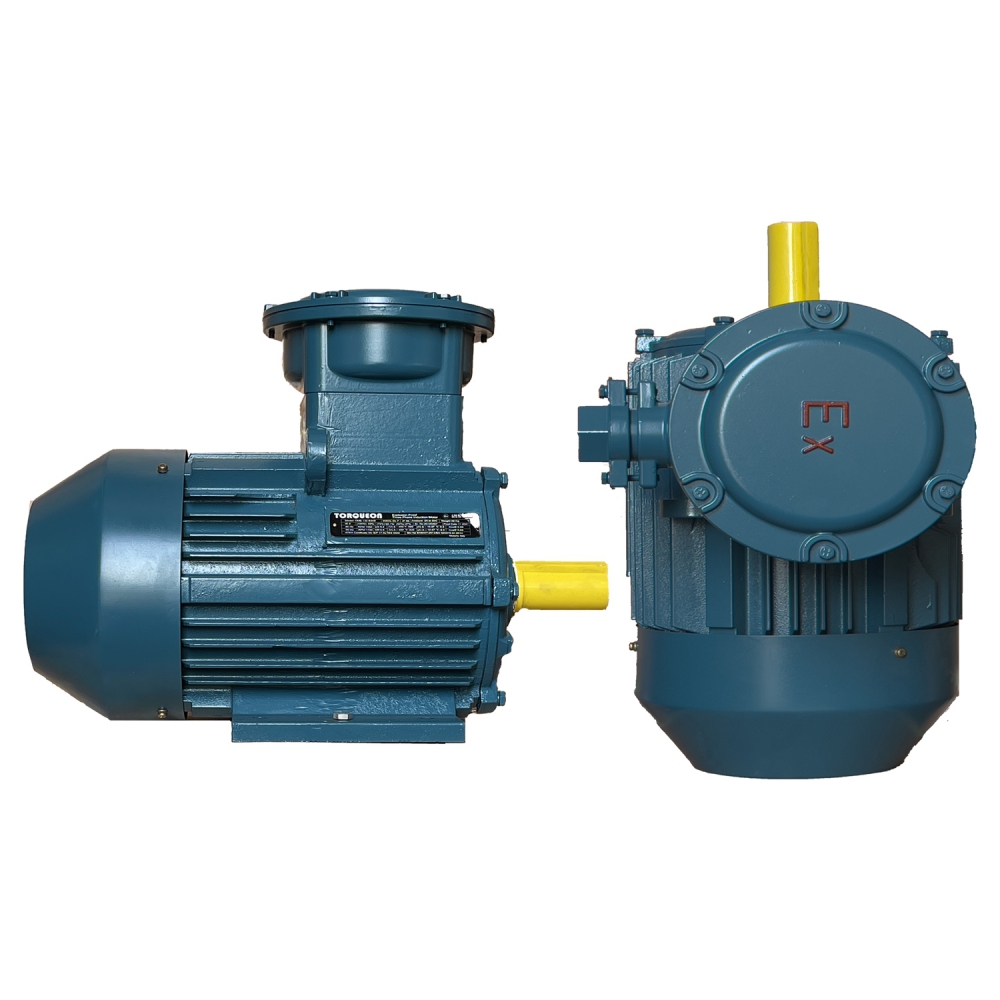

Torqueon Proof Electric Motors

Description

Typical Applications

2 Pole

SN	KW / HP	TYPE: (FOOT MOUNTED)	FLANGE MOUNTED	FACE MOUNTED	FOOT AND FLANGE MOUNTED	FACE & FOOT MOUNTED
1	0.18 / 0.25	TOEX63A2B3	TOEX63A2B5	TOEX63A2B14	TOEX63A2B35	TOEX63A2B34
2	0.25 / 0.37	TOEX63B2B3	TOEX63B2B5	TOEX63B2B14	TOEX63B2B35	TOEX63B2B34
3	0.37 / 0.5	TOEX71A2B3	TOEX71A2B5	TOEX71A2B14	TOEX71A2B35	TOEX71A2B34
4	0.55 / 0.75	TOEX71B2B3	TOEX71B2B5	TOEX71B2B14	TOEX71B2B35	TOEX71B2B34
5	0.75 / 1	TOEX80A2B3	TOEX80A2B5	TOEX80A2B14	TOEX80A2B35	TOEX80A2B34
6	1.1 / 1.5	TOEX80B2B3	TOEX80B2B5	TOEX80B2B14	TOEX80B2B35	TOEX80B2B34
7	1.5 / 2	TOEX90S2B3	TOEX90S2B5	TOEX90S2B14	TOEX90S2B35	TOEX90S2B34
8	2.2 / 3	TOEX90L2B3	TOEX90L2B5	TOEX90L2B14	TOEX90L2B35	TOEX90L2B34
9	3 / 4	TOEX100L2B3	TOEX100L2B5	TOEX100L2B14	TOEX100L2B35	TOEX100L2B34
10	4 / 5.5	TOEX112M2B3	TOEX112M2B5	TOEX112M2B14	TOEX112M2B35	TOEX112M2B34
11	5.5 / 7.5	TOEX132SA2B3	TOEX132SA2B5	TOEX132SA2B14	TOEX132SA2B35	TOEX132SA2B34
12	7.5 / 10	TOEX132SB2B3	TOEX132SB2B5	TOEX132SB2B14	TOEX132SB2B35	TOEX132SB2B34
13	11 / 15	TOEX2C160MA2B3	TOEX2C160MA2B5	TOEX2C160MA2B14	TOEX2C160MA2B35	TOEX2C160MA2B34
14	15 / 20	TOEX2C160MB2B3	TOEX2C160MB2B5	TOEX2C160MB2B14	TOEX2C160MB2B35	TOEX2C160MB2B34
15	18.5 / 25	TOEX2C160L2B3	TOEX2C160L2B5	TOEX2C160L2B14	TOEX2C160L2B35	TOEX2C160L2B34
16	22 / 30	TOEX2C180M2B3	TOEX2C180M2B5	TOEX2C180M2B14	TOEX2C180M2B35	TOEX2C180M2B34
17	30 / 40	TOEX2C200LA2B3	TOEX2C200LA2B5	TOEX2C200LA2B14	TOEX2C200LA2B35	TOEX2C200LA2B34
18	37 / 50	TOEX2C200LB2B3	TOEX2C200LB2B5	TOEX2C200LB2B14	TOEX2C200LB2B35	TOEX2C200LB2B34
19	45 / 60	TOEX2C225M2B3	TOEX2C225M2B5	TOEX2C225M2B14	TOEX2C225M2B35	TOEX2C225M2B34
20	55 / 75	TOEX2C250M2B3	TOEX2C250M2B5	TOEX2C250M2B14	TOEX2C250M2B35	TOEX2C250M2B34
21	75 / 100	TOEX2C280S2B3	TOEX2C280S2B5	TOEX2C280S2B14	TOEX2C280S2B35	TOEX2C280S2B34
22	90 / 125	TOEX2C280M2B3	TOEX2C280M2B5	TOEX2C280M2B14	TOEX2C280M2B35	TOEX2C280M2B34

4 Pole

SN	KW / HP	TYPE: (FOOT MOUNTED)	FLANGE MOUNTED	FOOT AND FLANGE MOUNTED	FACE MOUNTED	FACE & FOOT MOUNTED
1	0.12 / 0.18	TOEX63A4B3	TOEX63A4B5	TOEX63A4B35	TOEX63A4B14	TOEX63A4B34
2	0.18 / 0.25	TOEX63B4B3	TOEX63B4B5	TOEX63B4B35	TOEX63B4B14	TOEX63B4B34
3	0.25 / 0.37	TOEX71A4B3	TOEX71A4B5	TOEX71A4B35	TOEX71A4B14	TOEX71A4B34
4	0.37 / 0.5	TOEX71B4B3	TOEX71B4B5	TOEX71B4B35	TOEX71B4B14	TOEX71B4B34
5	0.55 / 0.75	TOEX80A4B3	TOEX80A4B5	TOEX80A4B35	TOEX80A4B14	TOEX80A4B34
6	0.75 / 1	TOEX80B4B3	TOEX80B4B5	TOEX80B4B35	TOEX80B4B14	TOEX80B4B34
7	1.1 / 1.5	TOEX90S4B3	TOEX90S4B5	TOEX90S4B35	TOEX90S4B14	TOEX90S4B34
8	1.5 / 2	TOEX90L4B3	TOEX90L4B5	TOEX90L4B35	TOEX90L4B14	TOEX90L4B34
9	2.2 / 3	TOEX100LA4B3	TOEX100LA4B5	TOEX100LA4B35	TOEX100LA4B14	TOEX100LA4B34
10	3 / 4	TOEX100LB4B3	TOEX100LB4B5	TOEX100LB4B35	TOEX100LB4B14	TOEX100LB4B34
11	4 / 5.5	TOEX112M4B3	TOEX112M4B5	TOEX112M4B35	TOEX112M4B14	TOEX112M4B34
12	5.5 / 7.5	TOEX132S4B3	TOEX132S4B5	TOEX132S4B35	TOEX132S4B14	TOEX132S4B34
13	7.5 / 10	TOEX132M4B3	TOEX132M4B5	TOEX132M4B35	TOEX132M4B14	TOEX132M4B34
14	11 / 15	TOEX2C160M4B3	TOEX2C160M4B5	TOEX2C160M4B35	TOEX2C160M4B14	TOEX2C160M4B34
15	15 / 20	TOEX2C160L4B3	TOEX2C160L4B5	TOEX2C160L4B35	TOEX2C160L4B14	TOEX2C160L4B34
16	18.5 / 25	TOEX2C180M4B3	TOEX2C1780M4B5	TOEX2C1780M4B35	TOEX2C1780M4B14	TOEX2C1780M4B34
17	22 / 30	TOEX2C180L4B3	TOEX2C180L4B5	TOEX2C180L4B35	TOEX2C180L4B14	TOEX2C180L4B34
18	30 / 40	TOEX2C200L4B3	TOEX2C200L4B5	TOEX2C200L4B35	TOEX2C200L4B14	TOEX2C200L4B34
19	37 / 50	TOEX2C225S4B3	TOEX2C225S4B5	TOEX2C225S4B35	TOEX2C225S4B14	TOEX2C225S4B34
20	45 / 60	TOEX2C225M4B3	TOEX2C225M4B5	TOEX2C225M4B35	TOEX2C225M4B14	TOEX2C225M4B34
21	55 / 75	TOEX2C250M4B3	TOEX2C250M4B5	TOEX2C250M4B35	TOEX2C250M4B14	TOEX2C250M4B34
22	75 / 100	TOEX2C280S4B3	TOEX2C280S4B5	TOEX2C280S4B35	TOEX2C280S4B14	TOEX2C280S4B34
23	90 / 125	TOEX2C280M4B3	TOEX2C280M4B5	TOEX2C280M4B35	TOEX2C280M4B14	TOEX2C280M4B34

6 Pole

SN	KW / HP	TYPE: (FOOT MOUNTED)	FLANGE MOUNTED	FOOT AND FLANGE MOUNTED	FACE MOUNTED	FACE & FOOT MOUNTED
1	0.18 / 0.25	TOEX71A6B3	TOEX71A6B5	TOEX71A6B35	TOEX71A614	TOEX71A6B34
2	0.25 / 0.37	TOEX71B6B3	TOEX71B6B5	TOEX71B6B35	TOEX71B6B14	TOEX71B6B34
4	0.37 / 0.5	TOEX80A64B3	TOEX80A64B5	TOEX80A64B35	TOEX80A64B14	TOEX80A64B34
5	0.55 / 0.75	TOEX80B6B3	TOEX80B6B5	TOEX80B6B35	TOEX80B6B14	TOEX80B6B34
6	0.75 / 1	TOEX90S6B3	TOEX90S6B5	TOEX90S6B35	TOEX90S6B14	TOEX90S6B34
7	1.1 / 1.5	TOEX90L6B3	TOEX90L6B5	TOEX90L6B35	TOEX90L6B14	TOEX90L6B34
8	1.5 / 2	TOEX100L6B3	TOEX100L6B5	TOEX100L6B35	TOEX100L6B14	TOEX100L6B34
9	2.2 / 3	TOEX112M6B3	TOEX112M6B5	TOEX112M6B35	TOEX112M6B14	TOEX112M6B34
10	3 / 4	TOEX132S6B3	TOEX132S6B5	TOEX132S6B35	TOEX132S6B14	TOEX132S6B34
11	4 / 5.5	TOEX132MA6B3	TOEX132MA6B5	TOEX132MA635	TOEX132MA6B14	TOEX132MA6B34
12	5.5 / 7.5	TOEX132MB6B3	TOEX132MB6B5	TOEX132MB6B35	TOEX132MB6B14	TOEX132MB6B34
13	7.5 / 10	TOEX2C160M6B3	TOEX2C160M6B5	TOEX2C160M6B35	TOEX2C160M6B14	TOEX2C160M6B34
15	11 / 15	TOEX2C160L6B3	TOEX2C160L6B5	TOEX2C160L6B35	TOEX2C160L6B14	TOEX2C160L6B34
16	15 / 20	TOEX2C180L6B3	TOEX2C180L6B5	TOEX2C180L6B35	TOEX2C180L6B14	TOEX2C180L6B34
17	18.5 / 25	TOEX2C200LA6B3	TOEX2C200LA6B5	TOEX2C200LA6B35	TOEX2C200LA6B14	TOEX2C200LA6B34
18	22 / 30	TOEX2C200LB6B3	TOEX2C200LB6B5	TOEX2C200LB6B35	TOEX2C200LB6B14	TOEX2C200LB6B34
19	30 / 40	TOEX2C225M6B3	TOEX2C225M6B5	TOEX2C225M6B35	TOEX2C225M6B14	TOEX2C225M6B34
20	37 / 50	TOEX2C250M6B3	TOEX2C250M6B5	TOEX2C250M6B35	TOEX2C250M6B14	TOEX2C250M6B34
21	45 / 60	TOEX2C280S6B3	TOEX2C280S6B5	TOEX2C280S6B35	TOEX2C280S6B14	TOEX2C280S6B34
22	55 / 75	TOEX2C280M6B3	TOEX2C280M6B5	TOEX2C280M6B35	TOEX2C280M6B14	TOEX2C280M6B34
