Torqueon Aluminium Electric Motors

Torqueon Brake Electric Motors

Description

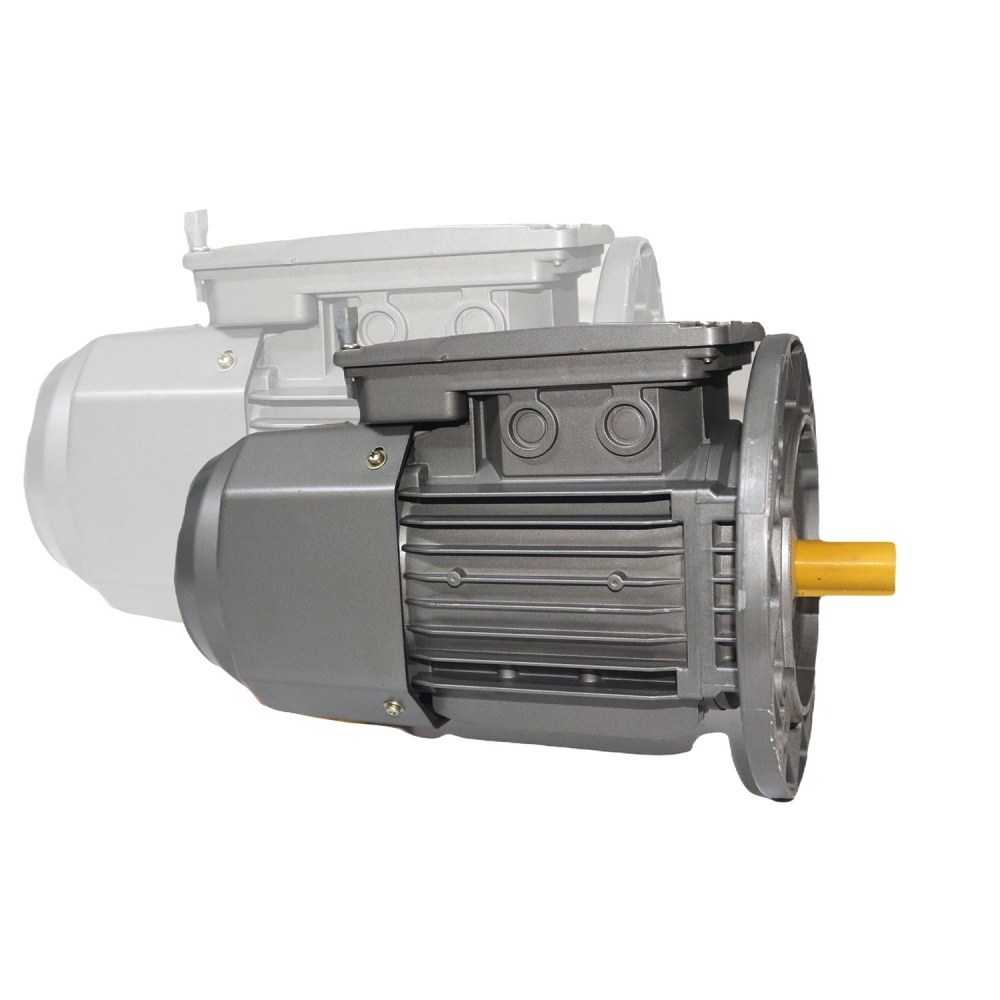

Besides standard production, Torqueon motors also produces three-phase brake motors with single or double polarity. The bodies of these brake motors are identical to standard motors’ ones, but they have a longer fan cover because, besides housing the fan, it must also protect the brake assembly.The brake is activated when the power supply is cut off.
When the motor is running, the springs are compressed by an electromagnet powered by the line voltage. When power is cut off, springs are released and they push (with an adjustable intensity) against a cast iron or steel plate which, in turn, presses against the friction disk.

Typical Applications

2 Pole

SN	KW / HP	TYPE: (FOOT MOUNTED)	FLANGE MOUNTED	FACE MOUNTED	FOOT AND FLANGE MOUNTED	FACE & FOOT MOUNTED
1	0.18 / 0.25	TOBM63A2B3	TOBM63A2B5	TOBM63A2B14	TOBM63A2B35	TOBM63A2B34
2	0.25 / 0.37	TOBM63B2B3	TOBM63B2B5	TOBM63B2B14	TOBM63B2B35	TOBM63B2B34
3	0.37 / 0.5	TOBM71A2B3	TOBM71A2B5	TOBM71A2B14	TOBM71A2B35	TOBM71A2B34
4	0.55 / 0.75	TOBM71B2B3	TOBM71B2B5	TOBM71B2B14	TOBM71B2B35	TOBM71B2B34
5	0.75 / 1	TOBM80A2B3	TOBM80A2B5	TOBM80A2B14	TOBM80A2B35	TOBM80A2B34
6	1.1 / 1.5	TOBM80B2B3	TOBM80B2B5	TOBM80B2B14	TOBM80B2B35	TOBM80B2B34
7	1.5 / 2	TOBM90S2B3	TOBM90S2B5	TOBM90S2B14	TOBM90S2B35	TOBM90S2B34
8	2.2 / 3	TOBM90L2B3	TOBM90L2B5	TOBM90L2B14	TOBM90L2B35	TOBM90L2B34
9	3 / 4	TOBM100L2B3	TOBM100L2B5	TOBM100L2B14	TOBM100L2B35	TOBM100L2B34
10	4 / 5.5	TOBM112M2B3	TOBM112M2B5	TOBM112M2B14	TOBM112M2B35	TOBM112M2B34
11	5.5 / 7.5	TOBM132SA2B3	TOBM132SA2B5	TOBM132SA2B14	TOBM132SA2B35	TOBM132SA2B34
12	7.5 / 10	TOBM132SB2B3	TOBM132SB2B5	TOBM132SB2B14	TOBM132SB2B35	TOBM132SB2B34
13	11 / 15	TOBM2C160MA2B3	TOBM2C160MA2B5	TOBM2C160MA2B14	TOBM2C160MA2B35	TOBM2C160MA2B34
14	15 / 20	TOBM2C160MB2B3	TOBM2C160MB2B5	TOBM2C160MB2B14	TOBM2C160MB2B35	TOBM2C160MB2B34
15	18.5 / 25	TOBM2C160L2B3	TOBM2C160L2B5	TOBM2C160L2B14	TOBM2C160L2B35	TOBM2C160L2B34
16	22 / 30	TOBM2C180M2B3	TOBM2C180M2B5	TOBM2C180M2B14	TOBM2C180M2B35	TOBM2C180M2B34
17	30 / 40	TOBM2C200LA2B3	TOBM2C200LA2B5	TOBM2C200LA2B14	TOBM2C200LA2B35	TOBM2C200LA2B34

4 Pole

SN	KW / HP	TYPE: (FOOT MOUNTED)	FLANGE MOUNTED	FOOT AND FLANGE MOUNTED	FACE MOUNTED	FACE & FOOT MOUNTED
1	0.12 / 0.18	TOBM63A4B3	TOBM63A4B5	TOBM63A4B35	TOBM63A4B14	TOBM63A4B34
2	0.18 / 0.25	TOBM63B4B3	TOBM63B4B5	TOBM63B4B35	TOBM63B4B14	TOBM63B4B34
3	0.25 / 0.37	TOBM63C4B3	TOBM63C4B5	TOBM63C4B35	TOBM63C4B14	TOBM63C4B34
4	0.25 / 0.37	TOBM71A4B3	TOBM71A4B5	TOBM71A4B35	TOBM71A4B14	TOBM71A4B34
5	0.37 / 0.5	TOBM71B4B3	TOBM71B4B5	TOBM71B4B35	TOBM71B4B14	TOBM71B4B34
6	0.55 / 0.75	TOBM71C4B3	TOBM71C4B5	TOBM71C4B35	TOBM71C4B14	TOBM71C4B34
7	0.55 / 0.75	TOBM80A4B3	TOBM80A4B5	TOBM80A4B35	TOBM80A4B14	TOBM80A4B34
8	0.75 / 1	TOBM80B4B3	TOBM80B4B5	TOBM80B4B35	TOBM80B4B14	TOBM80B4B34
9	1.1 / 1.5	TOBM80C4B3	TOBM80C4B5	TOBM80C4B35	TOBM80C4B14	TOBM80C4B34
10	1.1 / 1.5	TOBM90S4B3	TOBM90S4B5	TOBM90S4B35	TOBM90S4B14	TOBM90S4B34
11	1.5 / 2	TOBM90L4B3	TOBM90L4B5	TOBM90L4B35	TOBM90L4B14	TOBM90L4B34
12	2.2 / 3	TOBM90LC4B3	TOBM90LC4B5	TOBM90LC4B35	TOBM90LC4B14	TOBM90LC4B34
13	2.2 / 3	TOBM100LA4B3	TOBM100LA4B5	TOBM100LA4B35	TOBM100LA4B14	TOBM100LA4B34
14	3 / 4	TOBM100LB4B3	TOBM100LB4B5	TOBM100LB4B35	TOBM100LB4B14	TOBM100LB4B34
15	4 / 5.5	TOBM100LC4B3	TOBM100LC4B5	TOBM100LC4B35	TOBM100LC4B14	TOBM100LC4B34
16	4 / 5.5	TOBM112M4B3	TOBM112M4B5	TOBM112M4B35	TOBM112M4B14	TOBM112M4B34
17	5.5 / 7.5	TOBM112MX4B3	TOBM112MX4B5	TOBM112MX4B35	TOBM112MX4B14	TOBM112MX4B34
18	5.5 / 7.5	TOBM132S4B3	TOBM132S4B5	TOBM132S4B35	TOBM132S4B14	TOBM132S4B34
19	7.5 / 10	TOBM132M4B3	TOBM132M4B5	TOBM132M4B35	TOBM132M4B14	TOBM132M4B34
20	9.2 / 12.5	TOBM132MA4B3	TOBM132MA4B5	TOBM132MA4B35	TOBM132MA4B14	TOBM132MA4B34
21	11 / 15	TOBM2C160MB4B3	TOBM2C132MB4B5	TOBM2C132MBB35	TOBM2C132MB4B14	TOBM2C132B4B34
22	11 / 15	TOBM2C160M4B3	TOBM2C160M4B5	TOBM2C160M4B35	TOBM2C160M4B14	TOBM2C160M4B34
23	15 / 20	TOBM2C160L4B3	TOBM2C160L4B5	TOBM2C160L4B35	TOBM2C160L4B14	TOBM2C160L4B34
24	18.5 / 25	TOBM2C180M4B3	TOBM2C1780M4B5	TOBM2C1780M4B35	TOBM2C1780M4B14	TOBM2C1780M4B34
25	22 / 30	TOBM2C180L4B3	TOBM2C180L4B5	TOBM2C180L4B35	TOBM2C180L4B14	TOBM2C180L4B34
26	30 / 40	TOBM2C200L4B3	TOBM2C200L4B5	TOBM2C200L4B35	TOBM2C200L4B14	TOBM2C200L4B34

6 Pole

SN	KW / HP	TYPE: (FOOT MOUNTED)	FLANGE MOUNTED	FOOT AND FLANGE MOUNTED	FACE MOUNTED	FACE & FOOT MOUNTED
1	0.09 / 0.12	TOBM63A6B3	TOBM63A6B5	TOBM63A6B35	TOBM63A6B14	TOBM63A6B34
2	0.12 / 0.18	TOBM63B6B3	TOBM63B6B5	TOBM63B6B35	TOBM63B6B14	TOBM63B6B34
3	0.18 / 0.25	TOBM71A6B3	TOBM71A6B5	TOBM71A6B35	TOBM71A614	TOBM71A6B34
4	0.25 / 0.37	TOBM71B6B3	TOBM71B6B5	TOBM71B6B35	TOBM71B6B14	TOBM71B6B34
5	0.37 / 0.5	TOBM80A64B3	TOBM80A64B5	TOBM80A64B35	TOBM80A64B14	TOBM80A64B34
6	0.55 / 0.75	TOBM80B6B3	TOBM80B6B5	TOBM80B6B35	TOBM80B6B14	TOBM80B6B34
7	0.75 / 1	TOBM90S6B3	TOBM90S6B5	TOBM90S6B35	TOBM90S6B14	TOBM90S6B34
8	1.1 / 1.5	TOBM90L6B3	TOBM90L6B5	TOBM90L6B35	TOBM90L6B14	TOBM90L6B34
9	1.5 / 2	TOBM100L6B3	TOBM100L6B5	TOBM100L6B35	TOBM100L6B14	TOBM100L6B34
10	2.2 / 3	TOBM112M6B3	TOBM112M6B5	TOBM112M6B35	TOBM112M6B14	TOBM112M6B34
11	3 / 4	TOBM132S6B3	TOBM132S6B5	TOBM132S4B35	TOBM132S6B14	TOBM132S6B34
12	4 / 5.5	TOBM132MA6B3	TOBM132MA6B5	TOBM132MA635	TOBM132MA6B14	TOBM132MA6B34
13	5.5 / 7.5	TOBM132MB6B3	TOBM132MB6B5	TOBM132MB6B35	TOBM132MB6B14	TOBM132MB6B34
14	7.5 / 10	TOBM2C160M6B3	TOBM2C160M6B5	TOBM2C160M6B35	TOBM2C160M6B14	TOBM2C160M6B34
15	11 / 15	TOBM2C160L6B3	TOBM2C160L6B5	TOBM2C160L6B35	TOBM2C160L6B14	TOBM2C160L6B34
16	15 / 20	TOBM2C180L6B3	TOBM2C180L6B5	TOBM2C180L6B35	TOBM2C180L6B14	TOBM2C180L6B34
