TORQUEON | Modena, Italy

Torqueon Aluminium Electric Motors

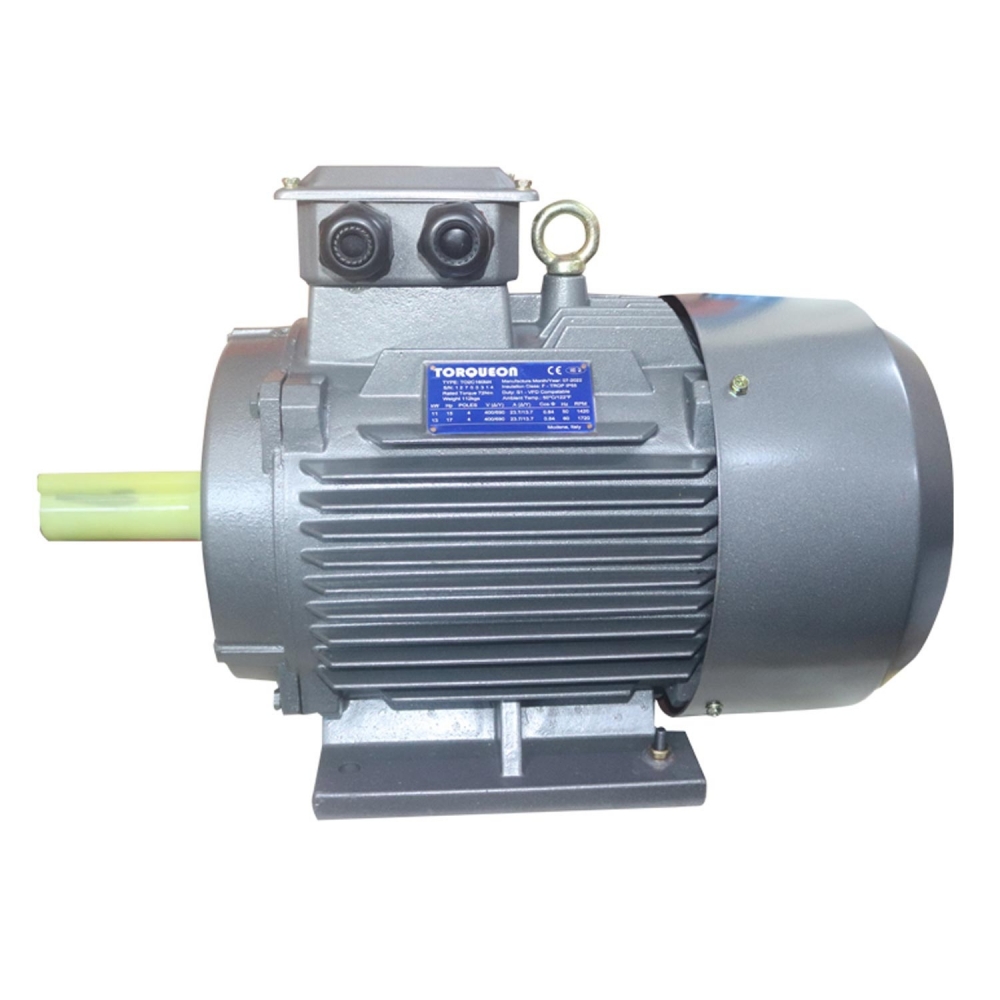

Torqueon CAST IRON Electric Motors

Description

These motors are designed and realized for the industrial sector, they are solid, reliable and can be used for different applications.

Three-phase asynchronous motors need low maintenance operations, they are very flexible, and can be used in both production and service applications

Widely used in many industrial applications, they guarantee reliability and high performances. They are motors for a wide range of applications, as they are very adaptable to customers’ needs.

Typical Applications

Food industry
Metallurgical industry
Paper industry
water treatment ant extraction plants
Pumps and compressors.
Elevators or good lifts
Conveyor belts
Ventilation and air-conditioning systems

2 Pole

SN	KW / HP	TYPE: (FOOT MOUNTED)	FLANGE MOUNTED	FACE MOUNTED	FOOT AND FLANGE MOUNTED	FACE & FOOT MOUNTED
1	0.37 / 0.5	TO2C71A2B3	TO2C71A2B5	TO2C71A2B14	TO2C71A2B35	TO2C71A2B34
2	0.55 / 0.75	TO2C71B2B3	TO2C71B2B5	TO2C71B2B14	TO2C71B2B35	TO2C71B2B34
3	0.75 / 1	TO2C80A2B3	TO2C80A2B5	TO2C80A2B14	TO2C80A2B35	TO2C80A2B34
4	1.1 / 1.5	TO2C80B2B3	TO2C80B2B5	TO2C80B2B14	TO2C80B2B35	TO2C80B2B34
5	1.5 / 2	TO2C90S2B3	TO2C90S2B5	TO2C90S2B14	TO2C90S2B35	TO2C90S2B34
6	2.2 / 3	TO2C90L2B3	TO2C90L2B5	TO2C90L2B14	TO2C90L2B35	TO2C90L2B34
7	3 / 4	TO2C100L2B3	TO2C100L2B5	TO2C100L2B14	TO2C100L2B35	TO2C100L2B34
8	4 / 5.5	TO2C112M2B3	TO2C112M2B5	TO2C112M2B14	TO2C112M2B35	TO2C112M2B34
9	5.5 / 7.5	TO2C132SA2B3	TO2C132SA2B5	TO2C132SA2B14	TO2C132SA2B35	TO2C132SA2B34
10	7.5 / 10	TO2C132SB2B3	TO2C132SB2B5	TO2C132SB2B14	TO2C132SB2B35	TO2C132SB2B34
11	11 / 15	TO2C160MA2B3	TO2C160MA2B5	TO2C160MA2B14	TO2C160MA2B35	TO2C160MA2B34
12	15 / 20	TO2C160MB2B3	TO2C160MB2B5	TO2C160MB2B14	TO2C160MB2B35	TO2C160MB2B34
13	18.5 / 25	TO2C160L2B3	TO2C160L2B5	TO2C160L2B14	TO2C160L2B35	TO2C160L2B34
14	22 / 30	TO2C180M2B3	TO2C180M2B5	TO2C180M2B14	TO2C180M2B35	TO2C180M2B34
15	30 / 40	TO2C200LA2B3	TO2C200LA2B5	TO2C200LA2B14	TO2C200LA2B35	TO2C200LA2B34
16	37 / 50	TO2C200LB2B3	TO2C200LB2B5	TO2C200LB2B14	TO2C200LB2B35	TO2C200LB2B34
17	45 / 60	TO2C225M2B3	TO2C225M2B5	TO2C225M2B14	TO2C225M2B35	TO2C225M2B34
18	55 / 75	TO2C250M2B3	TO2C250M2B5	TO2C250M2B14	TO2C250M2B35	TO2C250M2B34
19	75 / 100	TO2C280S2B3	TO2C280S2B5	TO2C280S2B14	TO2C280S2B35	TO2C280S2B34
20	90 / 125	TO2C280M2B3	TO2C280M2B5	TO2C280M2B14	TO2C280M2B35	TO2C280M2B34
21	110 / 150	TO2C315S2B3	TO2C315S2B5	TO2C315S2B14	TO2C315S2B35	TO2C315S2B34
22	132 / 180	TO2C315M2B3	TO2C315M2B5	TO2C315M2B14	TO2C315M2B35	TO2C315M2B34
23	160 / 220	TO2C315LA2B3	TO2C315LA2B5	TO2C315LA2B14	TO2C315LA2B35	TO2C315LA2B34
24	200 / 270	TO2C315LB2B3	TO2C315LB2B5	TO2C315LB2B14	TO2C315LB2B35	TO2C315LB2B34
25	250 / 340	TO2C355M2B3	TO2C355M2B5	TO2C355M2B14	TO2C355M2B35	TO2C355M2B34
26	315 / 420	TO2C355L2B3	TO2C355L2B5	TO2C355L2B14	TO2C355L2B3B35	TO2C355L2B3B34

4 Pole

SN	KW / HP	TYPE: (FOOT MOUNTED)	FLANGE MOUNTED	FOOT AND FLANGE MOUNTED	FACE MOUNTED	FACE & FOOT MOUNTED
1	0.37 / 0.5	TO2C71B4B3	TO2C71B4B5	TO2C71B4B35	TO2C71B4B14	TO2C71B4B34
2	0.55 / 0.75	TO2C80A4B3	TO2C80A4B5	TO2C80A4B35	TO2C80A4B14	TO2C80A4B34
3	0.75 / 1	TO2C80B4B3	TO2C80B4B5	TO2C80B4B35	TO2C80B4B14	TO2C80B4B34
4	1.1 / 1.5	TO2C90S4B3	TO2C90S4B5	TO2C90S4B35	TO2C90S4B14	TO2C90S4B34
5	1.5 / 2	TO2C90L4B3	TO2C90L4B5	TO2C90L4B35	TO2C90L4B14	TO2C90L4B34
6	2.2 / 3	TO2C100LA4B3	TO2C100LA4B5	TO2C100LA4B35	TO2C100LA4B14	TO2C100LA4B34
7	3 / 4	TO2C100LB4B3	TO2C100LB4B5	TO2C100LB4B35	TO2C100LB4B14	TO2C100LB4B34
8	4 / 5.5	TO2C112M4B3	TO2C112M4B5	TO2C112M4B35	TO2C112M4B14	TO2C112M4B34
9	5.5 / 7.5	TO2C132S4B3	TO2C132S4B5	TO2C132S4B35	TO2C132S4B14	TO2C132S4B34
10	7.5 / 10	TO2C132M4B3	TO2C132M4B5	TO2C132M4B35	TO2C132M4B14	TO2C132M4B34
11	11 / 15	TO2C160M4B3	TO2C160M4B5	TO2C160M4B35	TO2C160M4B14	TO2C160M4B34
12	15 / 20	TO2C160L4B3	TO2C160L4B5	TO2C160L4B35	TO2C160L4B14	TO2C160L4B34
13	18.5 / 25	TO2C180M4B3	TO2C1780M4B5	TO2C1780M4B35	TO2C1780M4B14	TO2C1780M4B34
14	22 / 30	TO2C180L4B3	TO2C180L4B5	TO2C180L4B35	TO2C180L4B14	TO2C180L4B34
15	30 / 40	TO2C200L4B3	TO2C200L4B5	TO2C200L4B35	TO2C200L4B14	TO2C200L4B34
16	37 / 50	TO2C225S4B3	TO2C225S4B5	TO2C225S4B35	TO2C225S4B14	TO2C225S4B34
17	45 / 60	TO2C225M4B3	TO2C225M4B5	TO2C225M4B35	TO2C225M4B14	TO2C225M4B34
18	55 / 75	TO2C250M4B3	TO2C250M4B5	TO2C250M4B35	TO2C250M4B14	TO2C250M4B34
19	75 / 100	TO2C280S4B3	TO2C280S4B5	TO2C280S4B35	TO2C280S4B14	TO2C280S4B34
20	90 / 125	TO2C280M4B3	TO2C280M4B5	TO2C280M4B35	TO2C280M4B14	TO2C280M4B34
21	110 / 150	TO2C315S4B3	TO2C315S4B5	TO2C315S4B35	TO2C315S4B14	TO2C315S4B34
22	132 / 180	TO2C315M4B3	TO2C315M4B5	TO2C315M4B35	TO2C315M4B14	TO2C315M4B34
23	160 / 220	TO2C315LA4B3	TO2C315LA4B5	TO2C315LA4B35	TO2C315LA4B14	TO2C315LA4B34
24	200 / 270	TO2C315LB4B3	TO2C315LB4B5	TO2C315LB4B35	TO2C315LB4B14	TO2C315LB4B34
25	250 / 340	TO2C355M4B3	TO2C355M4B5	TO2C355M4B35	TO2C355M4B14	TO2C355M4B34
26	315 / 420	TO2C355L4B3	TO2C355L4B5	TO2C355L4B35	TO2C355L4B14	TO2C355L4B34

6 Pole

SN	KW / HP	TYPE: (FOOT MOUNTED)	FLANGE MOUNTED	FOOT AND FLANGE MOUNTED	FACE MOUNTED	FACE & FOOT MOUNTED
1	0.37 / 0.5	TO2C80A64B3	TO2C80A64B5	TO2C80A64B35	TO2C80A64B14	TO2C80A64B34
2	0.55 / 0.75	TO2C80B6B3	TO2C80B6B5	TO2C80B6B35	TO2C80B6B14	TO2C80B6B34
3	0.75 / 1	TO2C90S6B3	TO2C90S6B5	TO2C90S6B35	TO2C90S6B14	TO2C90S6B34
4	1.1 / 1.5	TO2C90L6B3	TO2C90L6B5	TO2C90L6B35	TO2C90L6B14	TO2C90L6B34
5	1.5 / 2	TO2C100L6B3	TO2C100L6B5	TO2C100L6B35	TO2C100L6B14	TO2C100L6B34
6	2.2 / 3	TO2C112M6B3	TO2C112M6B5	TO2C112M6B35	TO2C112M6B14	TO2C112M6B34
7	3 / 4	TO2C132S64B3	TO2C132S64B5	TO2C132S64B35	TO2C132S64B14	TO2C132S64B34
8	4 / 5.5	TO2C132MA6B3	TO2C132MA6B5	TO2C132MA635	TO2C132MA6B14	TO2C132MA6B34
9	5.5 / 7.5	TO2C132MB6B3	TO2C132MB6B5	TO2C132MB6B35	TO2C132MB6B14	TO2C132MB6B34
10	7.5 / 10	TO2C160M6B3	TO2C160M6B5	TO2C160M6B35	TO2C160M6B14	TO2C160M6B34
11	11 / 15	TO2C160L6B3	TO2C160L6B5	TO2C160L6B35	TO2C160L6B14	TO2C160L6B34
12	15 / 20	TO2C180L6B3	TO2C180L6B5	TO2C180L6B35	TO2C180L6B14	TO2C180L6B34
13	18.5 / 25	TO2C200LA6B3	TO2C200LA6B5	TO2C200LA6B35	TO2C200LA6B14	TO2C200LA6B34
14	22 / 30	TO2C200LB6B3	TO2C200LB6B5	TO2C200LB6B35	TO2C200LB6B14	TO2C200LB6B34
15	30 / 40	TO2C225M6B3	TO2C225M6B5	TO2C225M6B35	TO2C225M6B14	TO2C225M6B34
16	37 / 50	TO2C250M6B3	TO2C250M6B5	TO2C250M6B35	TO2C250M6B14	TO2C250M6B34
17	45 / 60	TO2C280S6B3	TO2C280S6B5	TO2C280S6B35	TO2C280S6B14	TO2C280S6B34
18	55 / 75	TO2C280M6B3	TO2C280M6B5	TO2C280M6B35	TO2C280M6B14	TO2C280M6B34
19	75 / 100	TO2C315S6B3	TO2C315S6B5	TO2C315S6B35	TO2C315S6B14	TO2C315S6B34
20	90 / 125	TO2C315M6B3	TO2C315M6B5	TO2C315M6B35	TO2C315M6B14	TO2C315M6B34
21	110 / 150	TO2C315LA6B3	TO2C315LA6B5	TO2C315LA6B35	TO2C315LA6B14	TO2C315LA6B34
22	132 / 180	TO2C315LB6B3	TO2C315LB6B5	TO2C315LB6B35	TO2C315LB6B14	TO2C315LB6B34
23	160 / 220	TO2C355MA6B3	TO2C355MA6B5	TO2C355MA6B35	TO2C355MA6B14	TO2C355MA6B34
24	185 / 250	TO2C355MB6B3	TO2C355MB6B5	TO2C355MB6B35	TO2C355MB6B14	TO2C355MB6B34
25	250 / 340	TO2C355LA6B6	TO2C355LA6B5	TO2C355LA6B35	TO2C355LA6B14	TO2C355LA6B34
